2 Bakırlı Kalite Debriyaj Balatası Teknik Şartnamesi
DYNAMIC FRICTION (According to JIS D 4411)
T (C) | COEFFICIENT | SAMPLE A THICKNESS (mm) | SAMPLE B THICKNESS (mm) | WA (g) | WB (g) | dt | V (cm3 Nm) *10-7 | |||||||||||
T INC. | T DEC. | 1 | 2 | 3 | 4 | 5 | 1 | 2 | 3 | 4 | 5 | |||||||
AA | BA | AA | BA | |||||||||||||||
100 | 0.441 | 0.446 | 0.508 | 0.502 | 1.902 | 1.902 | 1.902 | 1.902 | 1.902 | 1.952 | 1.952 | 1.952 | 1.952 | 1.952 | 3.410 | 3.500 | 0.002 | 0.012 |
1.896 | 1.896 | 1.896 | 1.896 | 1.896 | 1.953 | 1.953 | 1.953 | 1.953 | 1.953 | 3.400 | 3.470 | |||||||
0.006 | 0.006 | 0.006 | 0.006 | 0.006 | -0.001 | -0.001 | -0.001 | -0.001 | -0.001 | 0.010 | 0.030 | |||||||
150 | 0.415 | 0.415 | 0.531 | 0.530 | 1.896 | 1.896 | 1.896 | 1.896 | 1.896 | 1.953 | 1.953 | 1.953 | 1.953 | 1.953 | 3.400 | 3.470 | 0.002 | 0.117 |
1.880 | 1.880 | 1.880 | 1.880 | 1.880 | 1.924 | 1.924 | 1.924 | 1.924 | 1.924 | 3.370 | 3.450 | |||||||
0.016 | 0.016 | 0.016 | 0.016 | 0.016 | 0.029 | 0.029 | 0.029 | 0.029 | 0.029 | 0.030 | 0.020 | |||||||
200 | 0.422 | 0.430 | 0.485 | 0.515 | 1.880 | 1.880 | 1.880 | 1.880 | 1.880 | 1.924 | 1.924 | 1.924 | 1.924 | 1.924 | 3.370 | 3.450 | 0.028 | 0.144 |
1.857 | 1.857 | 1.857 | 1.857 | 1.857 | 1.891 | 1.891 | 1.891 | 1.891 | 1.891 | 3.330 | 3.390 | |||||||
0.023 | 0.023 | 0.023 | 0.023 | 0.023 | 0.033 | 0.033 | 0.033 | 0.033 | 0.033 | 0.040 | 0.060 | |||||||
250 | 0.436 | 0.476 | 1.857 | 1.857 | 1.857 | 1.857 | 1.857 | 1.891 | 1.891 | 1.891 | 1.891 | 1.891 | 3.330 | 3.390 | 0.074 | 0.364 | ||
1.805 | 1.805 | 1.805 | 1.805 | 1.805 | 1.796 | 1.796 | 1.796 | 1.796 | 1.796 | 3.230 | 3.210 | |||||||
0.052 | 0.052 | 0.052 | 0.052 | 0.052 | 0.095 | 0.095 | 0.095 | 0.095 | 0.095 | 0.100 | 0.180 |
Static Friction Coefficient: 0,41 ± %5 μ

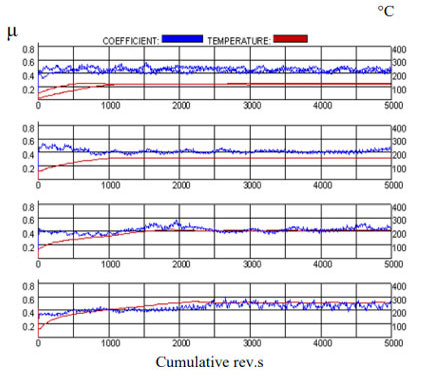

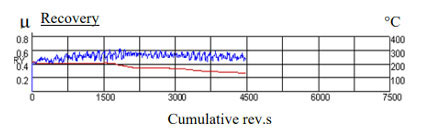

Dynamic Friction Coefficient: see charts
Wear Rate: see charts
Material Type: Woven
Physical Properties
Hardness: 90 ± 5 Shore-D
Spesific Gravity: 1,80 ± 0,5 gr/cm³
Appereance
Applications
- Passenger cars
- Commercial vehicles
- Industrial clutches
Mechanical Properties
Burst (Ø200 x Ø137 x 3,2mm.) 200°C: 13400 RPM±500
Recommended Working Values
T° Max. Continuous Operation: 250° C
T° Max. Intermittent Operation: 350° C
Others
Recommended Mating Surface:
- Perlitic cast iron, hardness HB150-200
Recommended Adhesives: Thermosetting adh.
Oil Resistant: Yes
